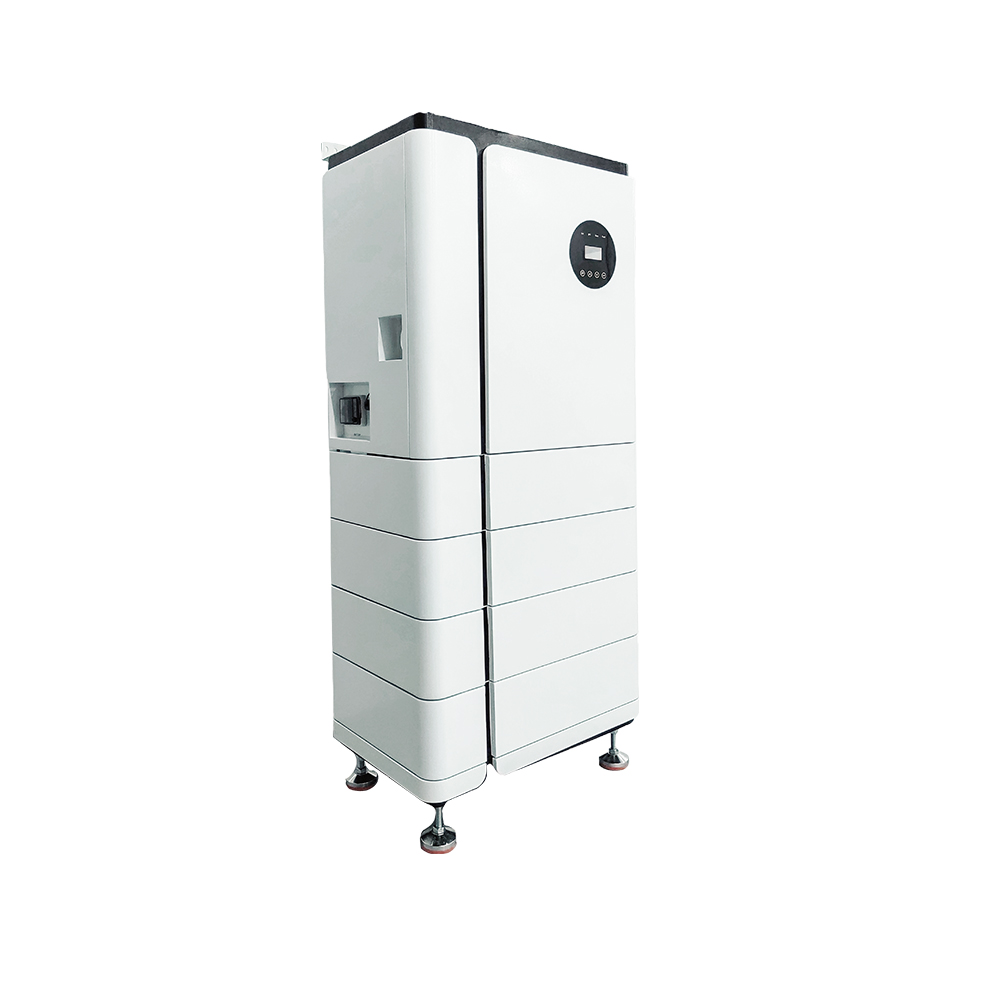

IEC Certified 12KW All In One Solar Home Storage Battery Systems With 3 Phases Inverter

Name: IEC Certified 12KW All In One Solar Home Storage Battery Systems With 3 Phases Inverter
Brand: YIMA
Price: 3 USD

Wholesale IEC Certified 12KW All In One Solar Home Storage Battery Systems With 3 Phases Inverter from china suppliers

Place of Origin : Guangdong, China

Brand Name : YIMA

Model Number : YM007

Certification : CE/RoHS/UN38.3/MSDS

Supply Ability : 100000 Piece/Pieces per Month

Price : $3,795.00/pieces 1-9 pieces

Warranty : 5years, 3-5 Years

Free installation service : NO

Application : Home, Home Appliances, BESS, UPS

Solar Panel Type : Monocrystalline Silicon, Polycrystalline Silicon

Battery Type : Lithium Ion, LiFePO4 Battery Pack

Controller Type : MPPT

Mounting Type : Ground Mounting

Load Power (W) : 8KW, 10KW, 12KW

Output Voltage (V) : 51.2V

Output Frequency : 20Hz

Work Time (h) : 24 Hours

Certificate : CEC,IEC,RoHS,CE

Pre-sales project design : Y

Product name : Solar Energy Storage Battery

Cycle life : 6000 Times

OEM/ODM : Aceeptable

Communication : intercom

Inverer Type : 3 Phases, Hybrid

Battery cell : BYD Cell

Port : Shenzhen/Hongkong

Contact Now

Customized LFP Battery Pack All In One Solar 8KW 10KW 12KW 3 Phases Inverter Home Energy Storage System

Our Advantage:

12 years professional experience

5 years warranty

24 hours service time
100% grade A cells

Products Description

Model	ESS-8K	ESS-10K	ESS-12K
PV Input
Max. power(kW)	12KW	15KW	18W
Max. DC voltage(V)	1000V
MPPT voltage range(V)	180V-850V
Max.input current of single MPPT(A)	13A
MPPT tracker/strings	2/1
AC Output
Rated output power(kVA)	8KVA	10KVA	12KVA
Max. output current(A)	12.7A	15.9A	19.1A
Grid voltage/range(V)	400V /360V~440V
Frequency (Hz)	50 /60Hz
THDI	<3%
AC output topology	3W+N+PE
EPS Output
Rated power (kVA)	8.8KVA	11KVA	13.2KVA
Rated output voltage(V)	400Vac
Rated output current(A)	12.7A	15.9A	19.1A
Rated frequency (Hz)	50Hz /60Hz
Battery technical parameters
Battery module	51.2V 50AH
Battery capacity	25kWh
MAX. parallel batteries	5 UNITS
Service Life	＞10years(25℃/77F)
Rated charge/discharge current(A)	40A
Communication interface	CAN/RS485
General Data
Operation Temperature	-10～+60℃
Cooling	forced air cooling
Relative Humidity	15%~85%(non-condensing)
Dimensions (W/D/H) mm	8006001833mm

IEC Certified 12KW All In One Solar Home Storage Battery Systems With 3 Phases Inverter

Company Profile

Shenzhen Yima Power Supply Co., Ltd. (hereinafter referred to as "Yima"was established in 2017. Yima is mainly committed to the research and development, producing and sales of lithium-ion 18650 21700 series cells and battery modules. Our products are widely used in four major sectors: Two-wheeler market (E-Bike, electric motorcycle/scooter, golf cart), Robot market (AGV, AI, early childhood education robot), Energy storage market (solar lights, industrial energy storage, household energy storage), Power tools market (garden tools, vacuum cleaners, sweepers).

Yima is High-tech enterprise, has passed the ISO9001 and ISO14001 quality and environmental management system, and all product have passed CE, UN38.3, MSDS, UL, ROSH and other certification.

Yima not only insist on principle of quality first, but also insist on the concept of technology first. And has cultivated a technical team from BAK, ATL, Sunwoda, central south University and other famous enterprise in the industry.
